>APP : Remoteyes(Camera), Hik-connect(NVR) ( IOS,Android), support download by QR code
>Search Tool：Settingtool(Camera), SADP (NVR)
>PC Client：VMS(camera), iVMS-4200(NVR)
>IPC Default IP: 192.168.1.110
> NVR Default IP：192.168.254.X
>Warranty: 3 Years
> NVR is 100% Original Hikvision, Support upgrade by Hikvision Official Website.
>If there is any problem with use, please contact with us at any time. we have very professinal engineer, can help you set online.
YC-PTZ-2386IRC-ZS
Hikvision Compatible 8MP Dual illumination Varifocal PTZ Camera
>1/2.8" IMX415 CMOS
>3840 × 2160-20 fps
>2.7-13.5mm 5X Varifocal lens
>H.265+, H.265, H.264
>F1.6-3.3 lens
>Built-in Microphone & Speaker
>IR Light Range: up to 40 m
>White Light Range: up to 40 m
>WDR/HDR/3D DNR/HLC/BLC
>Water and dust resistant(IP65)
>Color: 0.01 lux -(F1.6), 0 lux with light

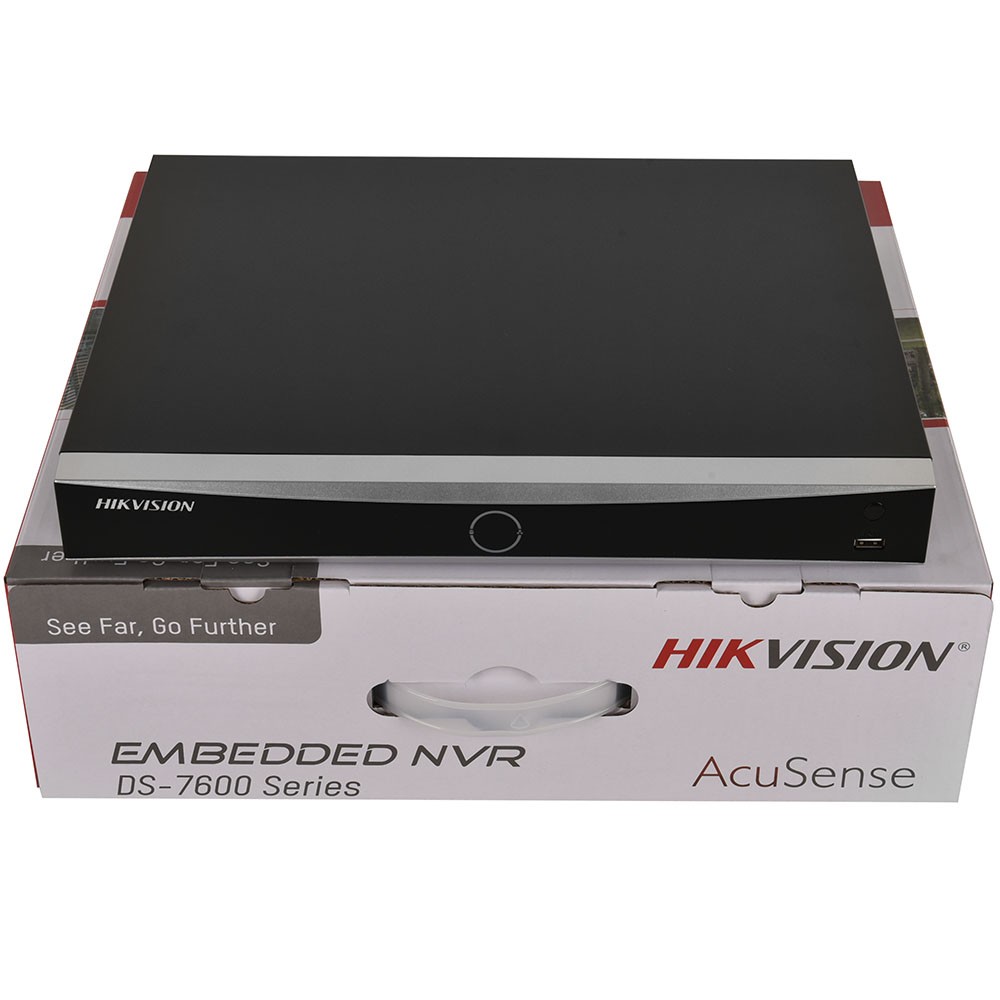

Hikvision Original 16-ch PoE 1U K Series AcuSense 4K NVR DS-7616NXI-K2/16P
> Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
> H.265+/H.265/H.264+/H.264 video formats
> Up to 2-ch-12 MP or 3-ch-8 MP or 6-ch-4 MP or 12-ch-1080p decoding capacity
> Up to 160 Mbps incoming bandwidth
> Adopt Hikvision Acusense technology to minimize manual effort and security costs
YC-PTZ-2386IRC-ZS
Hikvision Compatible 8MP Dual illumination Varifocal PTZ Camera
Camera |
Image Sensor | 1/2.8" IMX415 CMOS |
Min. Illumination | Color: 0.01lux -(F1.6), 0 lux with IR light |
Shutter Speed | 1/10 s to 1/10,000 s |
Slow Shutter | Yes |
Day & Night | IR cut Filter |
Digital Noise Reduction | 3D DNR 2D DNR |
WDR | 120dB |
3-Axis Adjustment | Pan: 0° to 300°, tilt: 0° to 180°, rotate: 0° to 360° |
Lens |
Focal Length | 2.7-13.5 mm 5X Optical zoom |
Aperture | F1.6-3.3 |
Lens Type | Varifocal lens,motorized lens,2.7 to 13.5mm |
FOV | horizontal FOV: 101° to 34°, vertical FOV: 56 to 19°, diagonal FOV: 125° to 37° |
Lens Mount | M14 |
PTZ | |
Movement Range(Pan) | 275° |
Movement Range(Tilt) | 0° to 90° |
Pan Speed | Pan Speed: 15°/s |
Tilt Speed | Tilt Speed: 10°/s |
Illuminator | |
White & IR Light Range | Up to 40 m |
Smart Supplement Light | Yes |
Compression Standard | |
Video Compression | Main stream: H.265+/H.265/H.264 Sub-stream: H.265+/H.265/H.264 |
H.264 Type | High Profile/Main Profile/Base Profile |
H.265 Type | High Profile/Main Profile/Base Profile |
H.265+ | High Profile/Main Profile/Base Profile |
Smart Feature-set | |
Smart Event | Human detection, Vehice detection |
Basic Event | Motion detection |
Linkage Method | Trigger recording: network storage, pre-record and post-record Trigger captured pictures uploading: FTP, Email Trigger notification: FTP, Email |
Image |
Max. Resolution | 3840×2160 |
Main Stream | 50Hz: 20-FPS(3840×2160),30FPS-(3072×2048,2592×1944,2560×1440,2304×1296 ) 60-FPS(1920×1080，1280×720)； 60Hz: 20-FPS(3840×2160),30FPS-(3072×2048,2592×1944,2560×1440,2304×1296 ) 60-FPS(1920×1080，1280×720)； |
Sub-Stream | 50Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 480,480 × 360,CIF) |
60Hz: 30 fps (720 x 480,640 × 480, 640 × 360, 480 × 480,480 × 360,CIF) |
Image Enhancement | WDR/HDR/3D DNR/2D DNR/HLC/BLC |
Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser |
SVC | H.264 and H.265 and H.265+ encoding support |
Day/Night Switch | Day/Night/Auto/Schedule |
Network |
Network Storage | Support local storage and NAS (NFS, SMB/CIFS) |
Protocols | HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P, DHCP,SMTP,RTMP |
Client | AJ_Client,AC18Pro,Videolink |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Built-in Microphone | YES |
Built-in Speaker | Power: 3W.MAX. Sound pressure lever:10cm: 100dB. |
Reset Key | YES |
On-Board Storage | Built-in memory card slot, support microSD card,up to 512GB |
General |
Operating Conditions | -30 °C to +85 °C, humidity 95% or less (non-condensing) |
Web Client Language | 14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese, Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi |
Power Supply | DC 12V 2A , Φ 5.5 *2.1mm coaxial plug power PoE(802.3af) Max.12W |
Protection Level | IP67-Each Camera has been tested waterproof |
Material | Front cover:metal,body:metal |
Dimensions | Camera: 139 × 117 x 107mm (5.47" × 4.61 x 4.21") Package: 148× 148 × 169 mm (5.83" × 5.83" × 6.65”) |
Weight | Apporx.510g(1.12 lb) |
With Package Weight | Apporx.650g(1.43 lb) |
DS-7616NXI-K2/16P
- Intelligent Analytics
- AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
- AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
- Facial Recognition
- Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
- Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
- Facial Detection And Analytics Performance1-ch, 8 MP
- Face Picture Comparison4-ch
- Motion Detection 2.0
- By DeviceAll channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
- Perimeter Protection
- By Device2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
- By CameraAll channels
- Video And Audio
- IP Video Input16-ch
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
- VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output ModeHDMI/VGA independent output
- CVBS OutputN/A
- Audio Output1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
- Two-Way Audio1-ch, RCA (Linear, 1 KΩ)
- Decoding
- Decoding FormatH.265/H.265+/H.264+/H.264
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback16-ch
- Decoding Capability
AI on: 1-ch-12 MP (30 fps)/2-ch-8 MP (30 fps)/4-ch-4 MP (30 fps)/8-ch-1080p (30 fps)
AI off: 2-ch-12 MP (30 fps)/3-ch-8 MP (30 fps)/6-ch-4 MP (30 fps)/12-ch-1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
- Network
- Remote Connection128
- APIONVIF (profile S/G); SDK; ISAPI
- Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 200 W
- StandardIEEE 802.3af/at
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 10 TB capacity for each HDD
- USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
- Alarm In/Out4/1
- General
- GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 15 W (without HDD and PoE off)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (W × D × H)385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
- Weight≤ 3 kg (without HDD, 6.6 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
- Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
1.YC-PTZ-2386IRC-ZS Hikvision Compatible 8MP Dual illumination Varifocal PTZ Camera
2.Hikvision 16-ch PoE 1U K Series AcuSense 4K NVR DS-7616NXI-K2/16P *1
3.Accessory
